PS90 Barrel Shroud Removal Jig System – For 16" Barrel Models

Remove the factory barrel shroud from your PS90 with confidence using this purpose-built jig system. Designed specifically for rifles with the factory 16" barrel and blind-pinned shroud, this tool set provides a stable, repeatable setup for blind pin removal and safe disassembly.

Key Features:

• Designed for factory PS90 rifles with 16" barrels and OEM blind-pinned shrouds
• Holds the shroud securely while the barrel is loosened and removed
• Includes a separate 3D-printed alignment tool for precise blind pin drilling
• CNC-machined aluminum and stainless components
• Shroud contact points protect your firearm from marring
• Compact and easy to store
• Not required or compatible with aftermarket shrouds

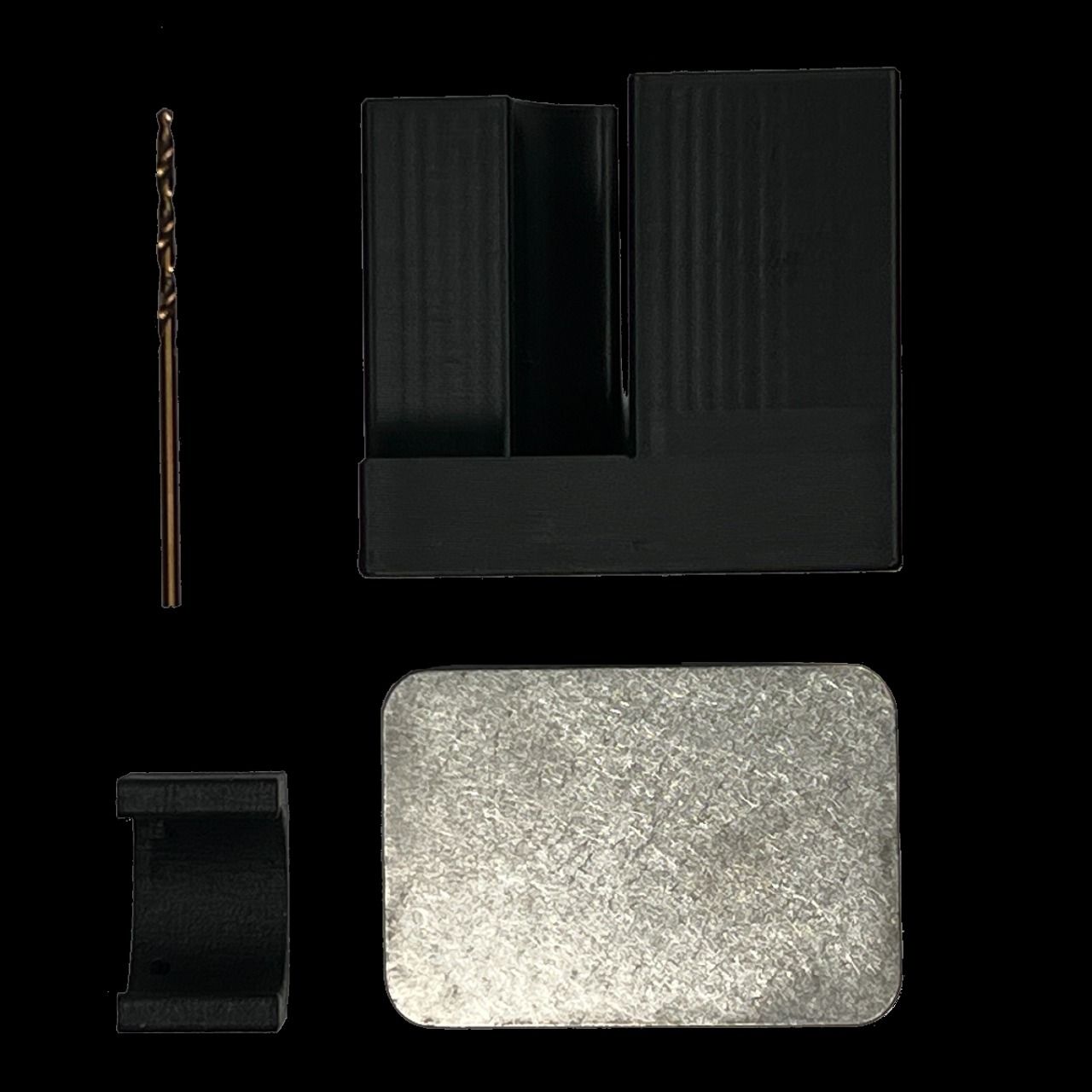

What’s Included:

• Machined Anodized Aluminum jig to hold the shroud in a vise
• Precision-cut stainless plate to interface with the shroud and jig
• 3D-printed drill bit alignment tool (consumable – may need replacement after a few uses)
• 5/64" cobalt drill bit (consumable – intended for limited use)

Tools Required (Not Included):

• Bench vise
• 15mm thin wrench
• Hand drill
• 1/8" drift punch
• Hammer
• Compressed air (to clear metal shavings before barrel removal)

Recommended Use:

This tool is ideal for removing the OEM barrel shroud as part of a barrel swap, compliance modification, or upgrade project. Best suited for use by professional gunsmiths or experienced builders.

Note: This tool is not required for removing aftermarket shrouds, which are typically not blind pinned.

Professional gunsmithing is highly recommended.

Installation & Compliance Notes:

• This jig system is intended for use with factory PS90 rifles that feature a blind-pinned barrel shroud.
• Some damage may occur during disassembly, especially with extremely tight barrels or incorrect use of the tool system.
• Improper removal of the blind pin or misuse of the jig may damage the upper receiver or affect barrel retention.
• Use of this tool may void the factory warranty.
• The included drill bit and alignment tool are considered consumables and may require replacement after a few uses depending on wear, heat, and individual technique.
• Consumable items are not covered under any warranty.
• Additional tools required (not included): 15mm thin wrench, 1/8" drift punch, hammer, bench vise, hand drill, center punch, and compressed air to clear metal shavings before wrenching on the barrel.
• Professional gunsmithing is highly recommended to ensure proper removal and reinstallation.
• Always verify your local, state, and federal regulations before modifying any firearm.
• Any modification affecting barrel length, shroud length, or pinning may have legal implications depending on your jurisdiction.

Barrel Shroud Removal Made Easy for PS90 Owners

Removing the factory shroud on your PS90 can be challenging without the right tools. This barrel shroud removal jig system is engineered specifically for PS90 rifles with 16" barrels and blind-pinned shrouds. Unlike makeshift setups, this system securely holds the shroud in place and includes a dedicated drill bit alignment tool to help you locate and remove the factory blind pin with confidence.

Whether you're installing a threaded barrel shroud, upgrading your upper receiver, converting to an SBR, or preparing for compliance modifications, this jig system helps reduce the risk of damage to your PS90's critical components. With precision-machined parts and a repeatable setup, it’s ideal for both professional gunsmiths and serious enthusiasts.
